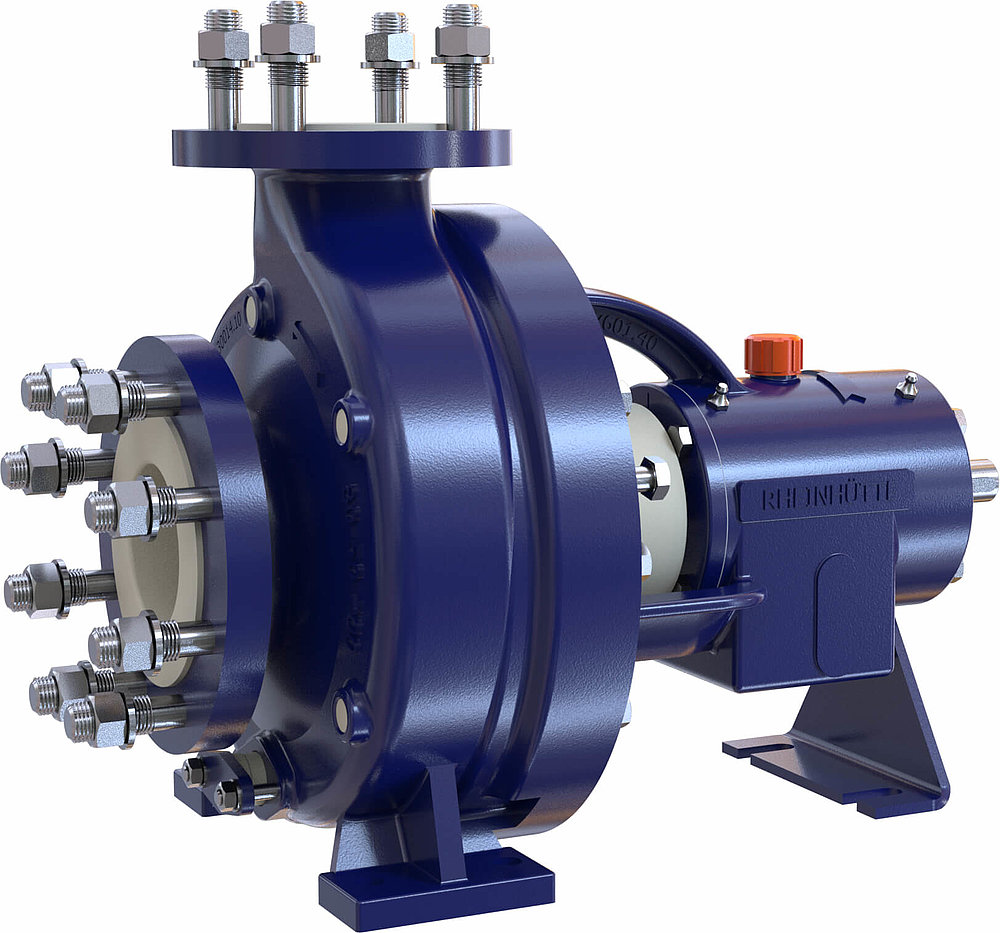

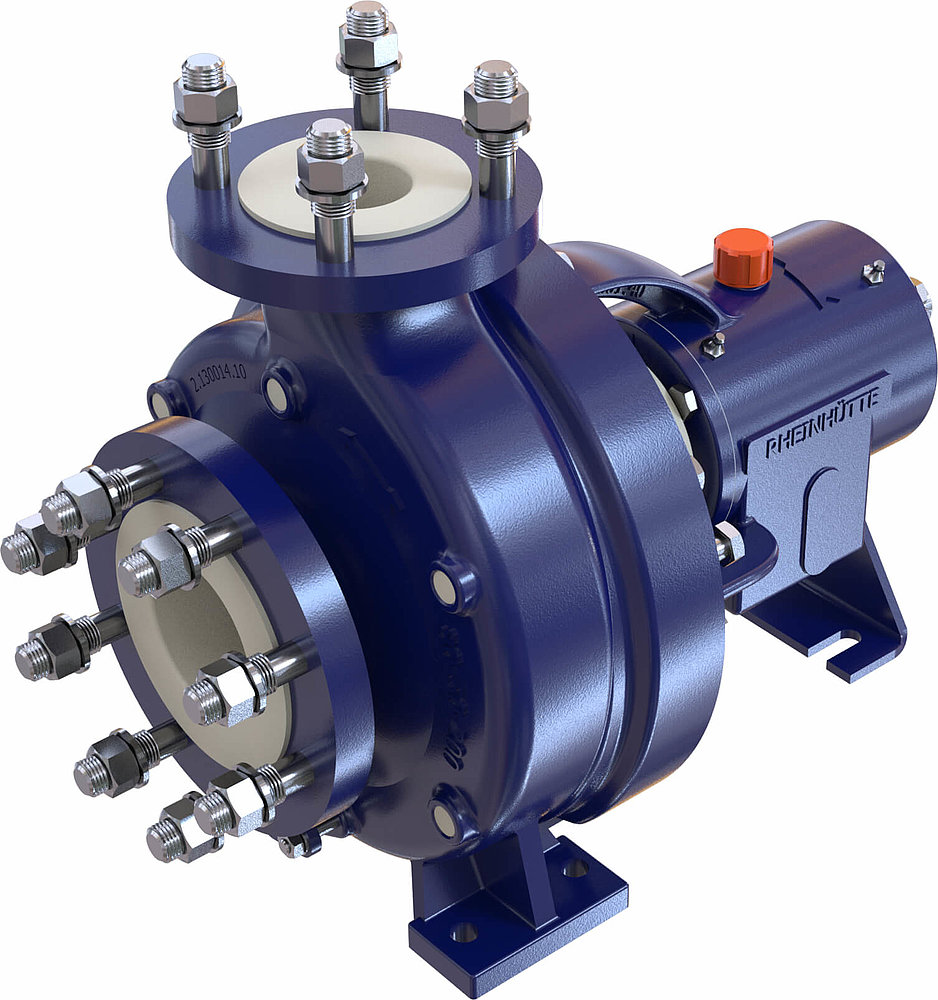

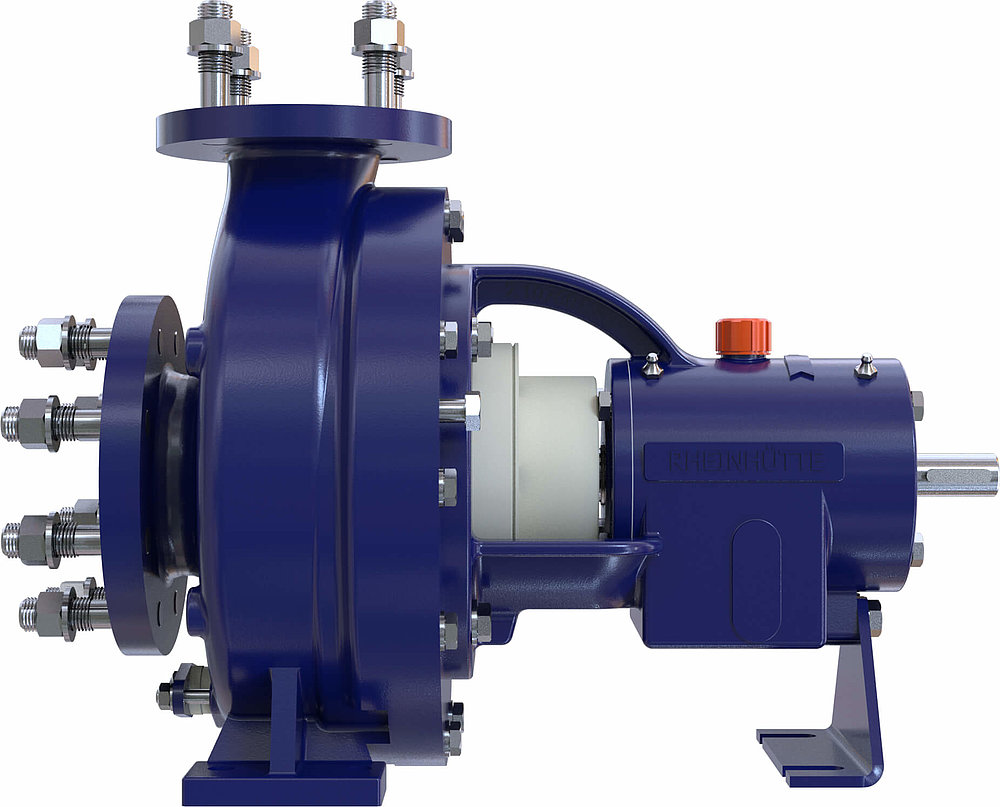

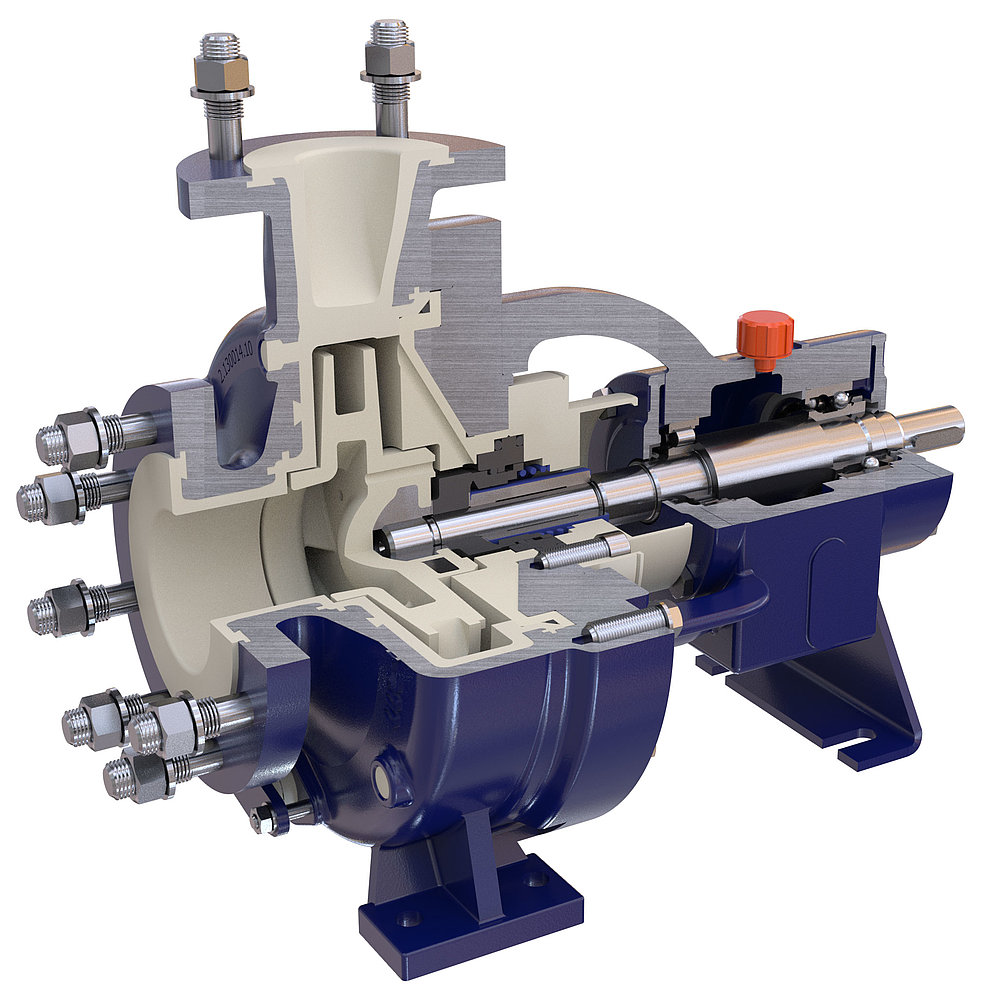

FNP – Standardized chemical pump with PFA-Lining
Technical Data
Design
Horizontal centrifugal pump
Impeller
Closed
Temperature
-30 °C to 190 °C (-22 °F to 374 °F)
Material
Plastics
Delivery rate
Qmax. = 70 m3/h
Nominal pressure
up to 16 bar
Size
DN 25 - DN 80
Delivery head
Hmax. = 95 m (312 ft)
Suitable for virtually universally use in the chemical and pharmaceutical industry, petrochemicals and general processing technology.
- Chlor-Alkali Electrolysis
- Steel and Stainless steel pickles
- Chemical industry
- Sea water
- Pharmaceutical industry
- Petrochemistry
- General process engineering
Norm
ISO 5199, ISO 2858, EN 22858
Type
horizontal, single-stage
Construction
back-pull-out design according to ISO 2858
Casing design
Single volute casing
Impeller
Closed
Bearing lubrication
Grease or oil lubrication
Installation versions
Base frame welded or base plate cast
Ambient temperature
-20°C to 60°C (-4 °F to 140 °F)
Solid content limit value
approx. 5 %
Drain of volute casing
Temperature and vibration monitoring
Flange connections according to international standards
Thermosyphon system
Storage and priming tank
Pump accessories
- Perfluoralkoxi PFA
