CPDR - Standardized chemical pump in plastic

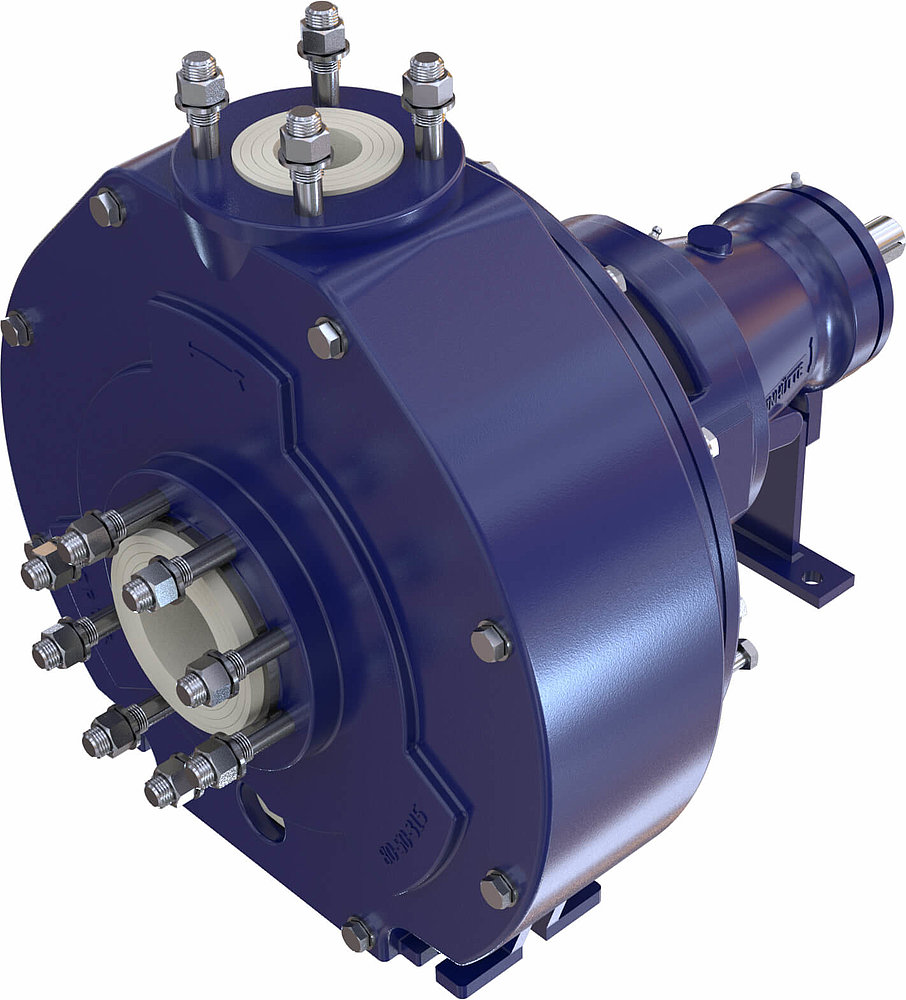

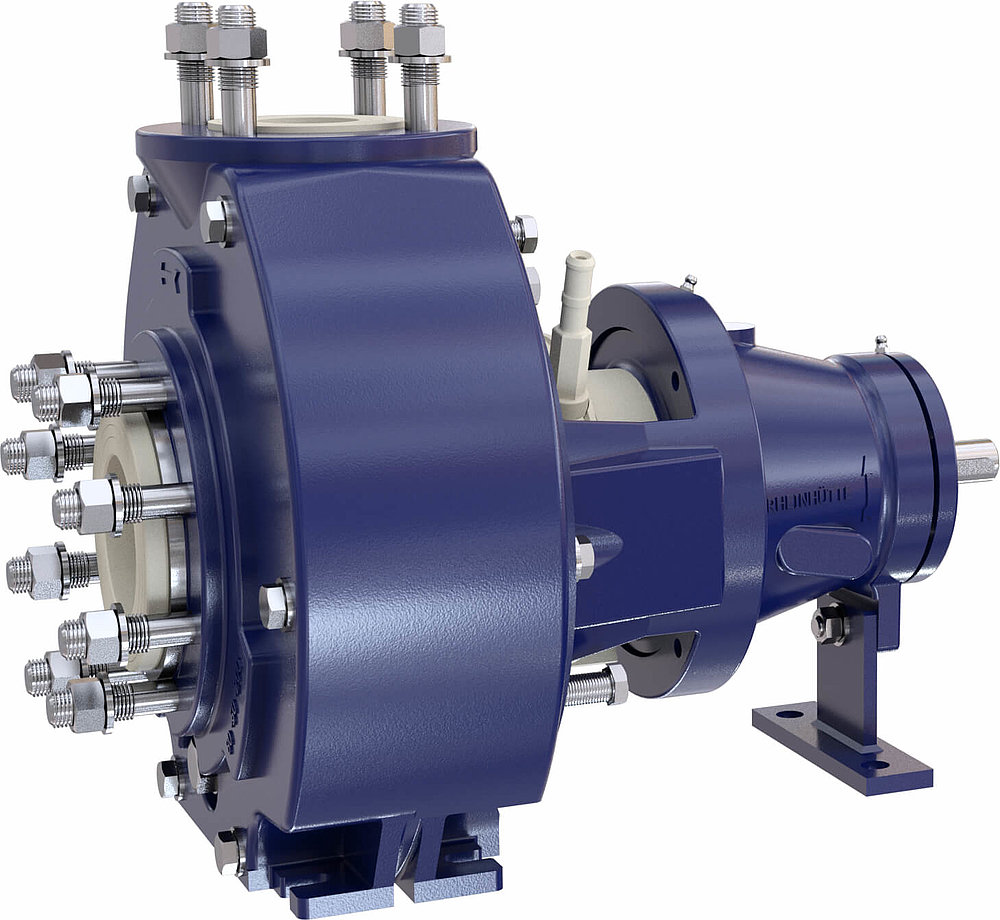

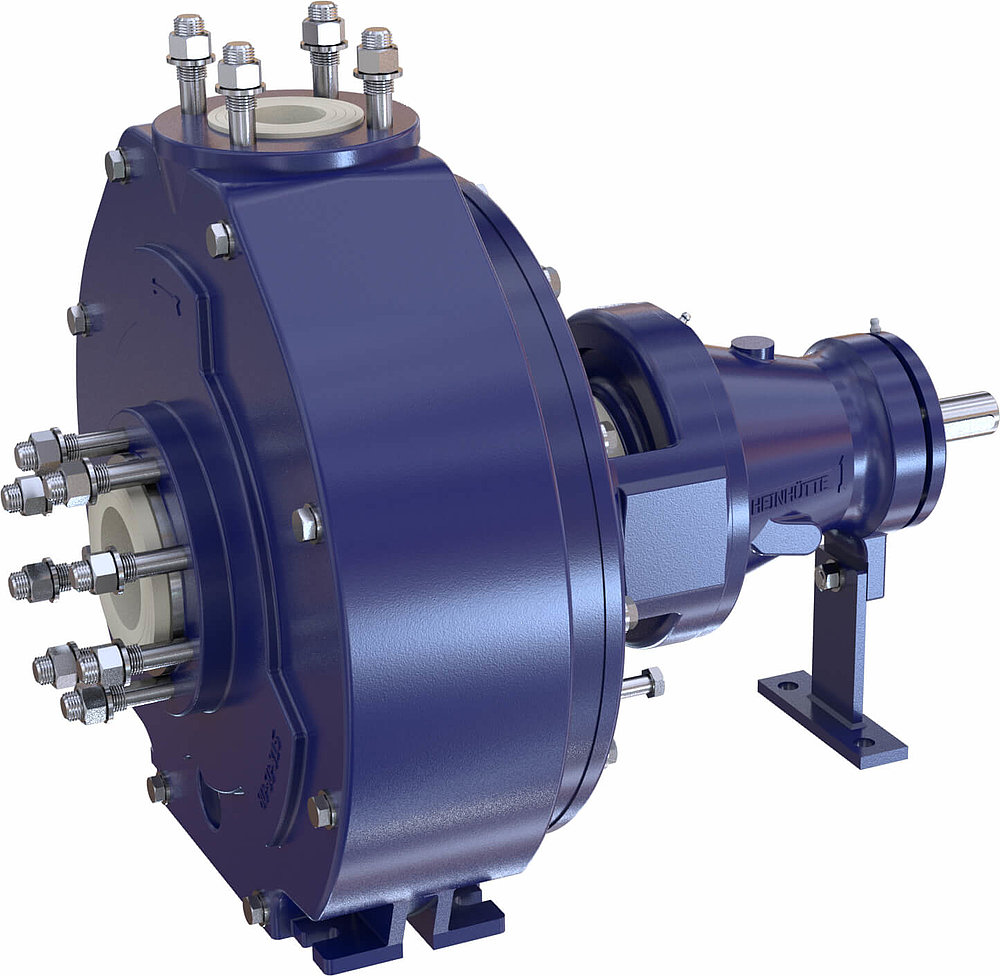

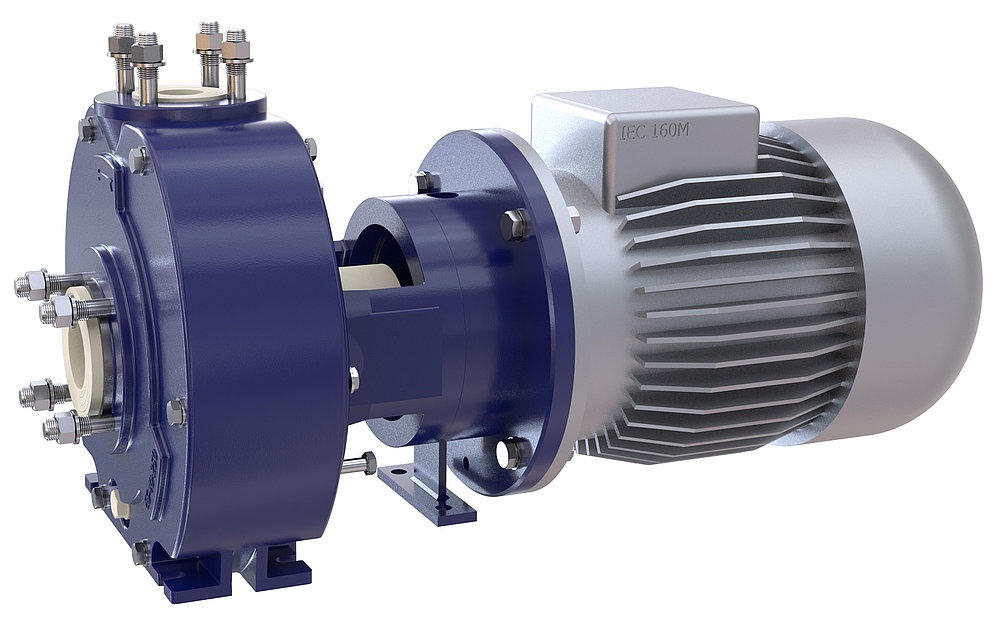

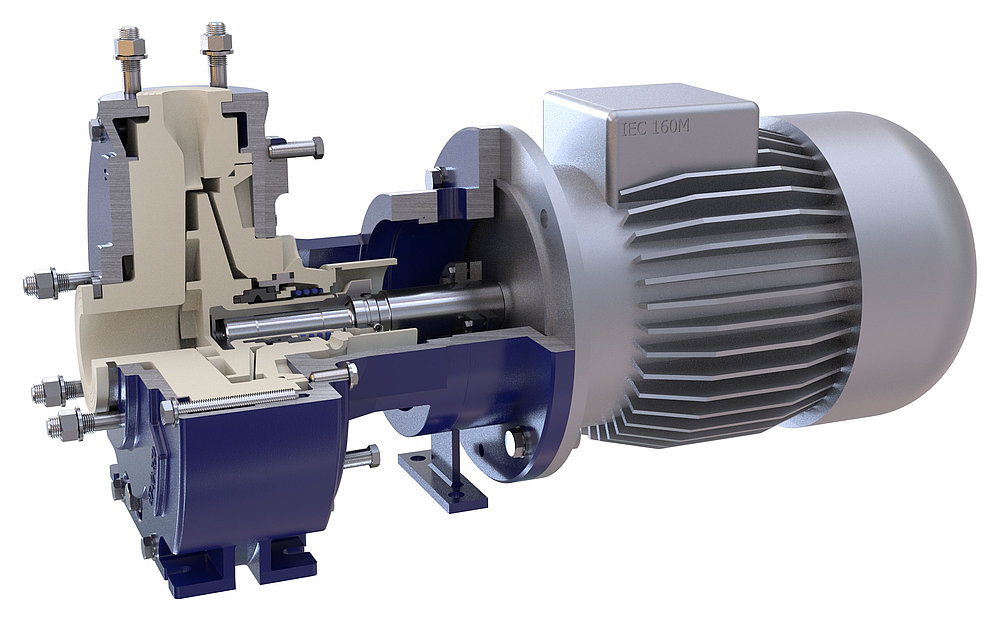

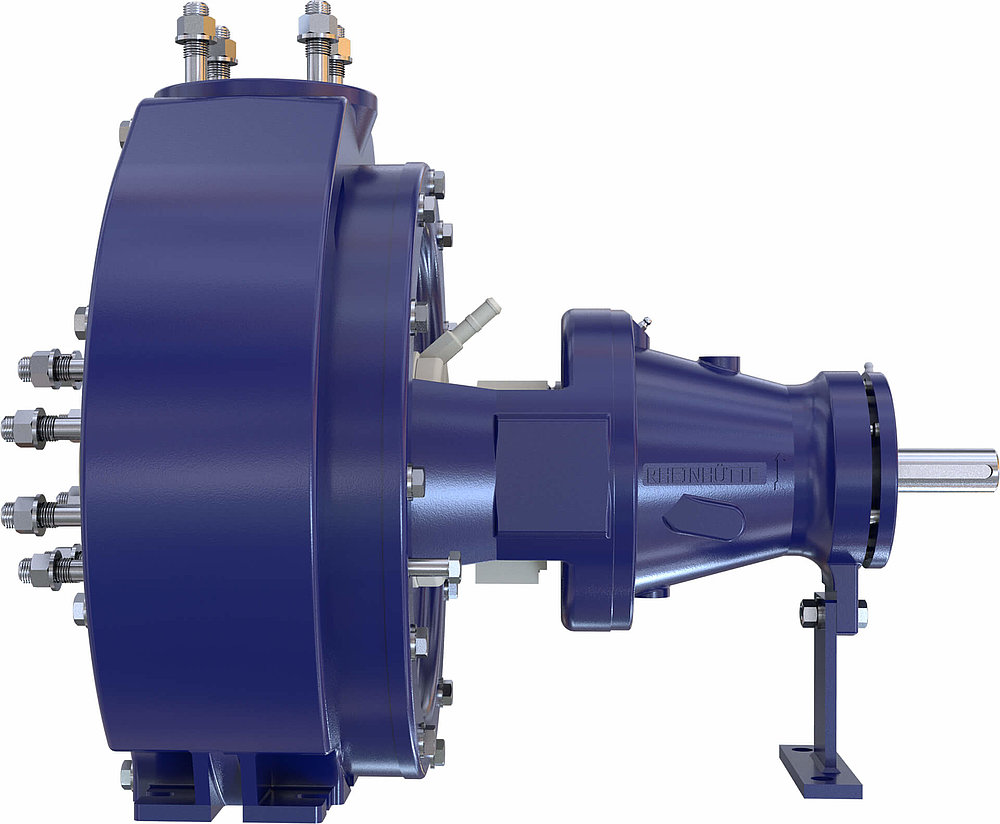

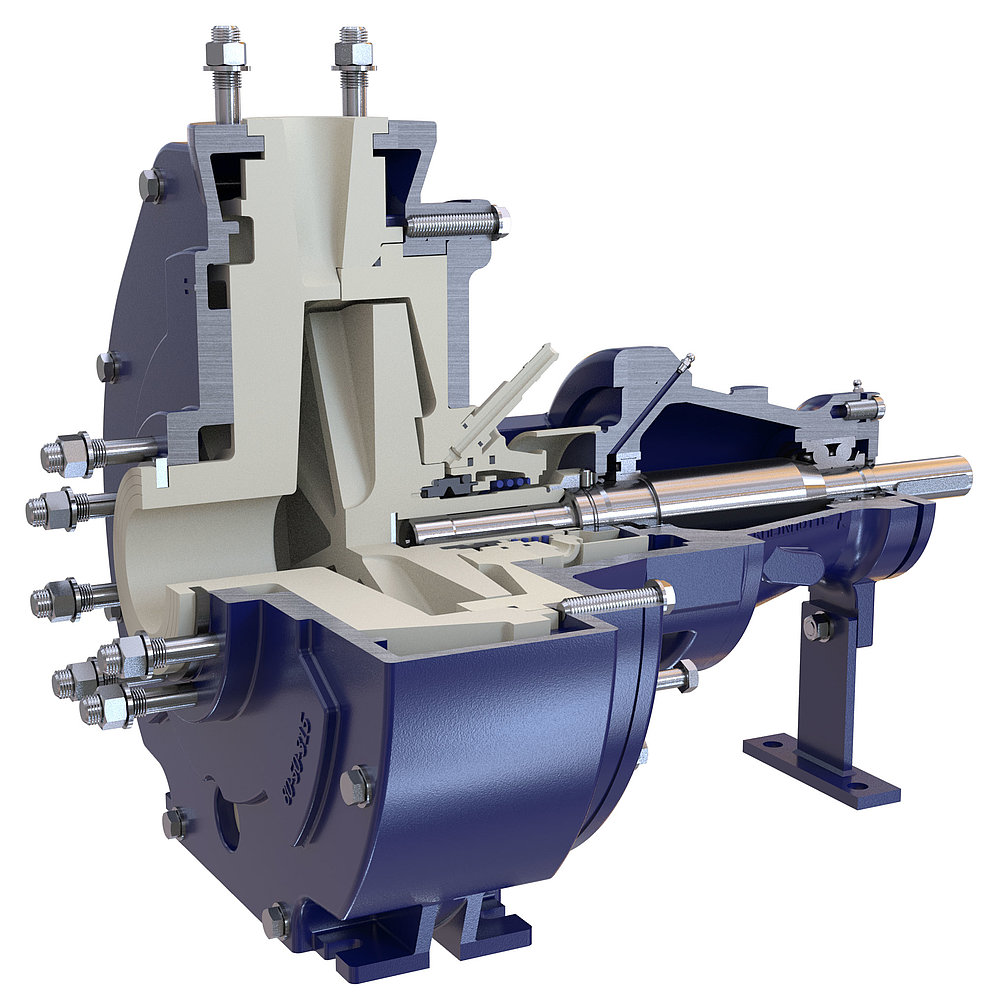

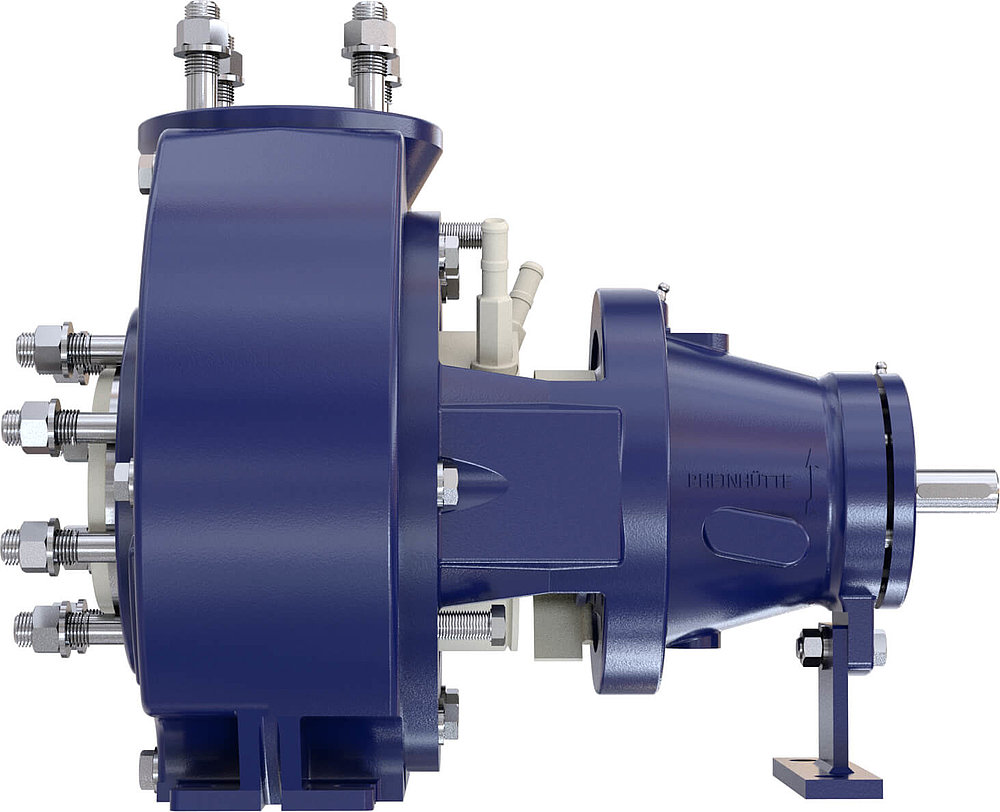

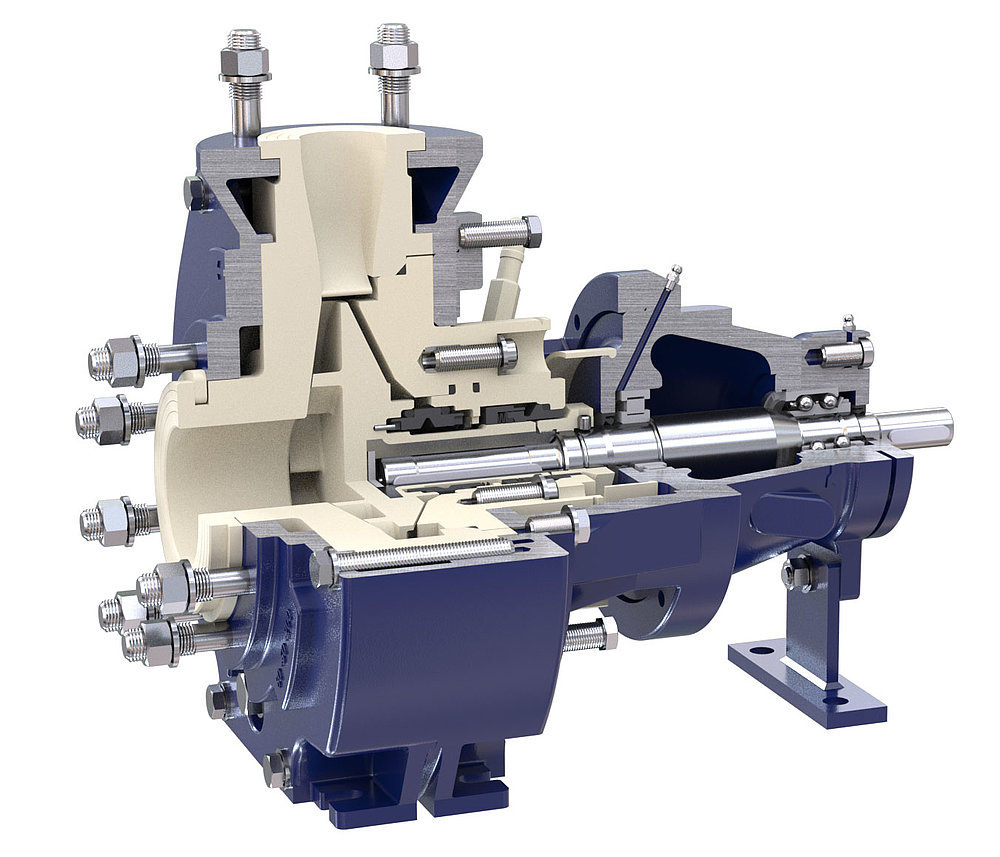

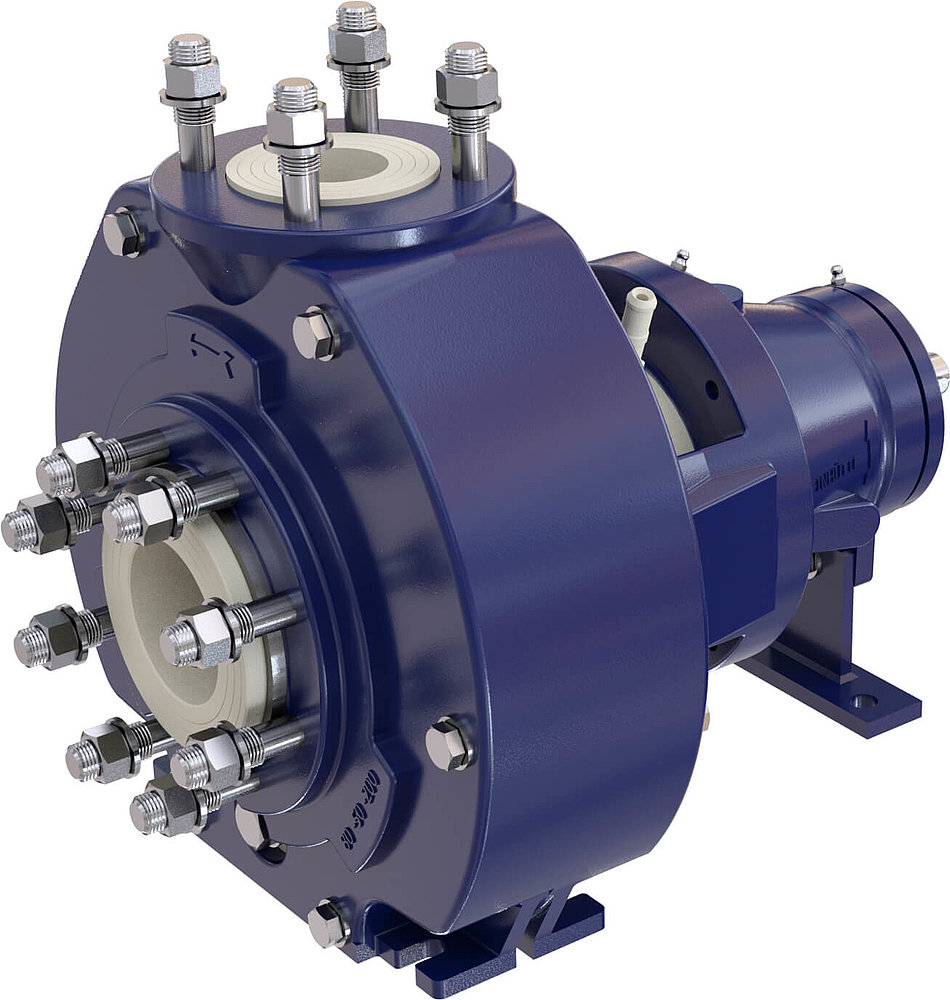

Pumps of the CPDR and CPRF type family are horizontal, single-stage, end-suction, top-discharge centrifugal pumps, standardized to EN 22858 (formerly DIN 24256; ISO 2858 and ISO 5199). The installation length of type CPRF is simply longer about the channel width so that a free passage for the fluid is given. The pumps are used for handling chemically aggressive and/or inflammable liquids within the wide field of chemical processing and environmental technology. The CPDR with open impeller is foreseen for clean liquids and fluids with a small content of solids. The CPRF is able to handle fluids with larger solids. Both types are possible in close-coupled design instead of bearing block.

Technical Data

Design
Horizontal centrifugal pump

Impeller
open or free-flow impeller (type CPRF)

Temperature
-40 °C to 190 °C (-40 °F to 374 °F)

Material
Plastics

Delivery rate
Q_max. = 200 m³/h

Nominal pressure
up to 16 bar

Size
DN 32 - DN 80

Delivery head
H_max. = 100 m

Norm
ISO 5199, ISO 2858, EN 22858

Type
horizontal, single-stage

Construction
back-pull-out design according to ISO 2858

Casing design
Single or double volute casing

Impeller
open or free-flow impeller (type CPRF)

Bearing lubrication
Grease or oil lubrication

Installation versions
Base frame welded or base plate cast

Ambient temperature
-20°C to 60°C (-4 °F to 140 °F)

Solid content limit value
approx. 5 %
