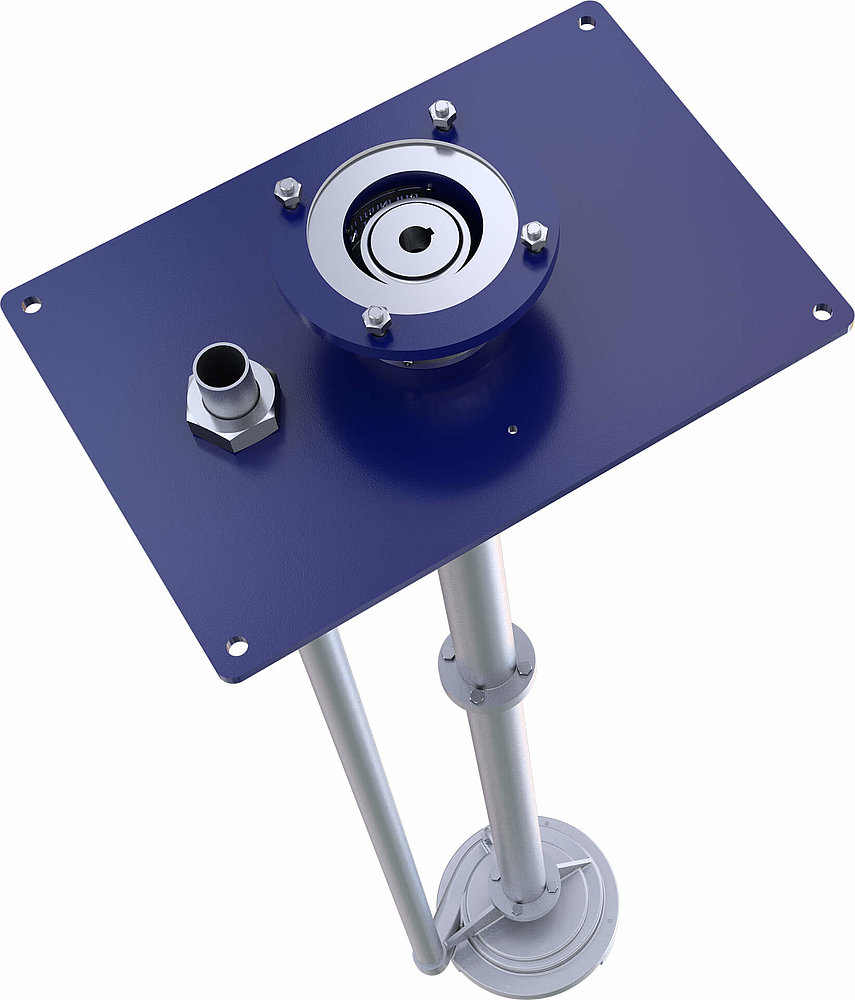

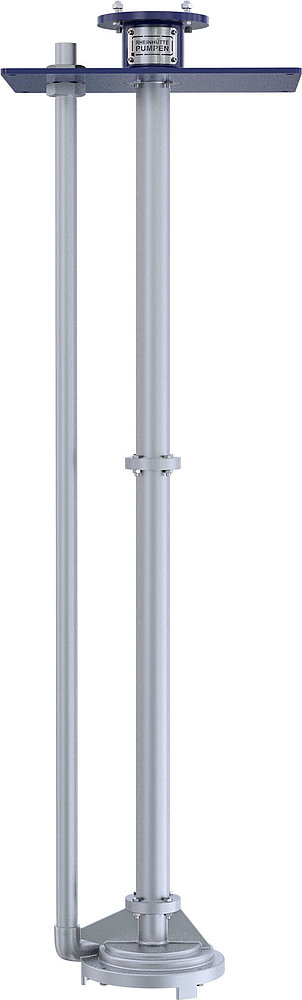

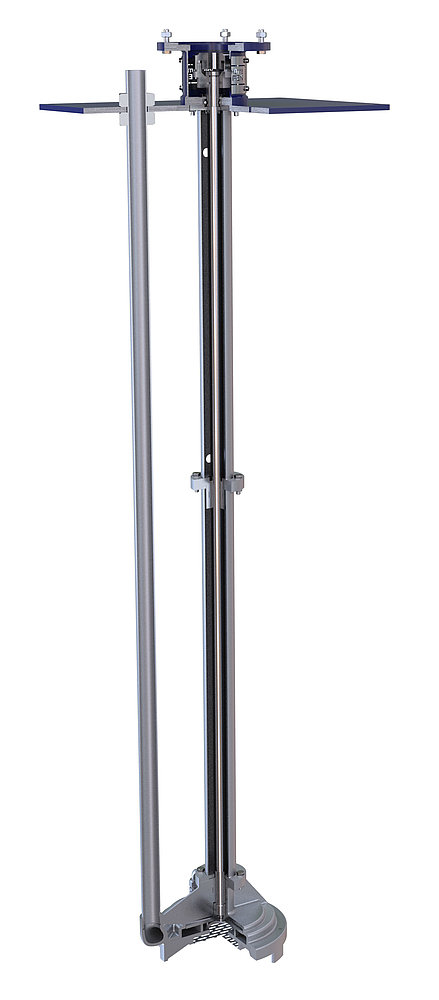

RK – Vertical chemical centrifugal pump in metal
Technical Data
Design
Vertical centrifugal pump
Impeller
Open
Temperature
-40°C to 100 °C (-40 °F to 212 °F)
Material
Metal
Delivery rate
Qmax. = 56 m3/h
Nominal pressure
up to 10 bar
Size
DN 40 - DN 50
Delivery head
Hmax. = 55 m (180 ft)
Depth
up to 2,00 m (6,56 ft)
Chemically aggressive media, contaminated liquids with solids up to a maximum grain size of 8 mm.
Emergency pump
Norm
ISO 5199
Type
Vertical, single-stage
Casing design
Double volute casing
Impeller
Open
Bearing lubrication
Grease lubrication
Sleeve bearing lubrication
By the pumped medium or external lubrication
Pump installation:
Wet installation
Installation options
Sole plate for tank or steel
Ambient temperature
-20°C to 60°C (-4 °F to 140 °F)
approx. 5 %
Flange connections according to international standards
Suction tube and/ or suction strainer
Pump accessories
Austenitic stainless steel 1.4408
