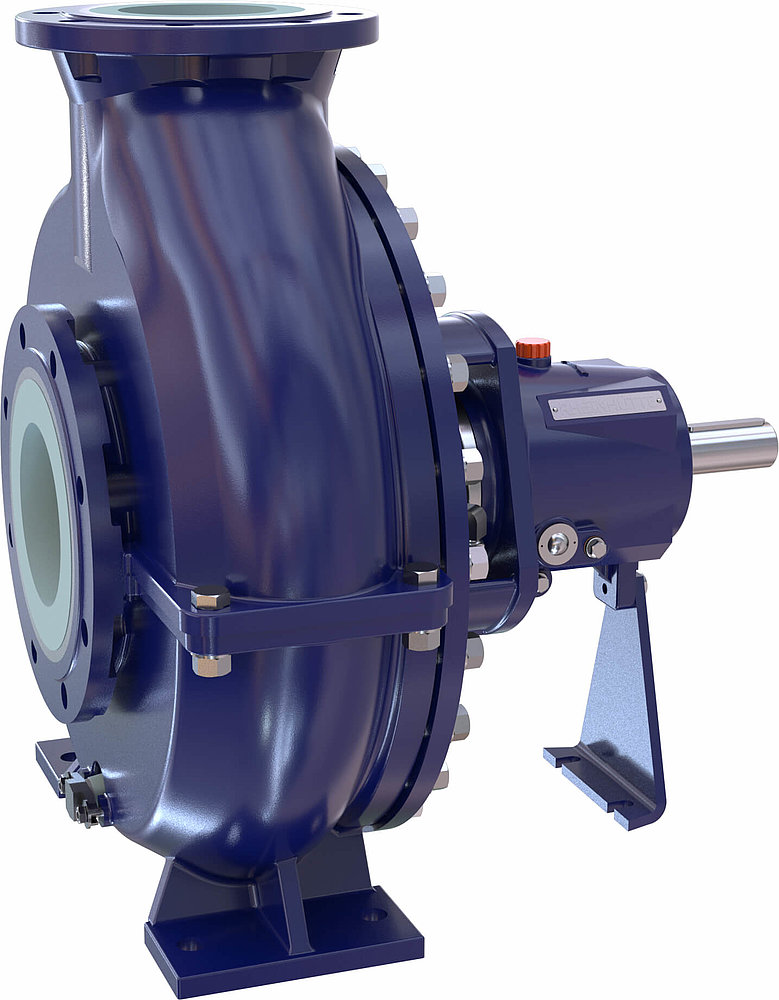

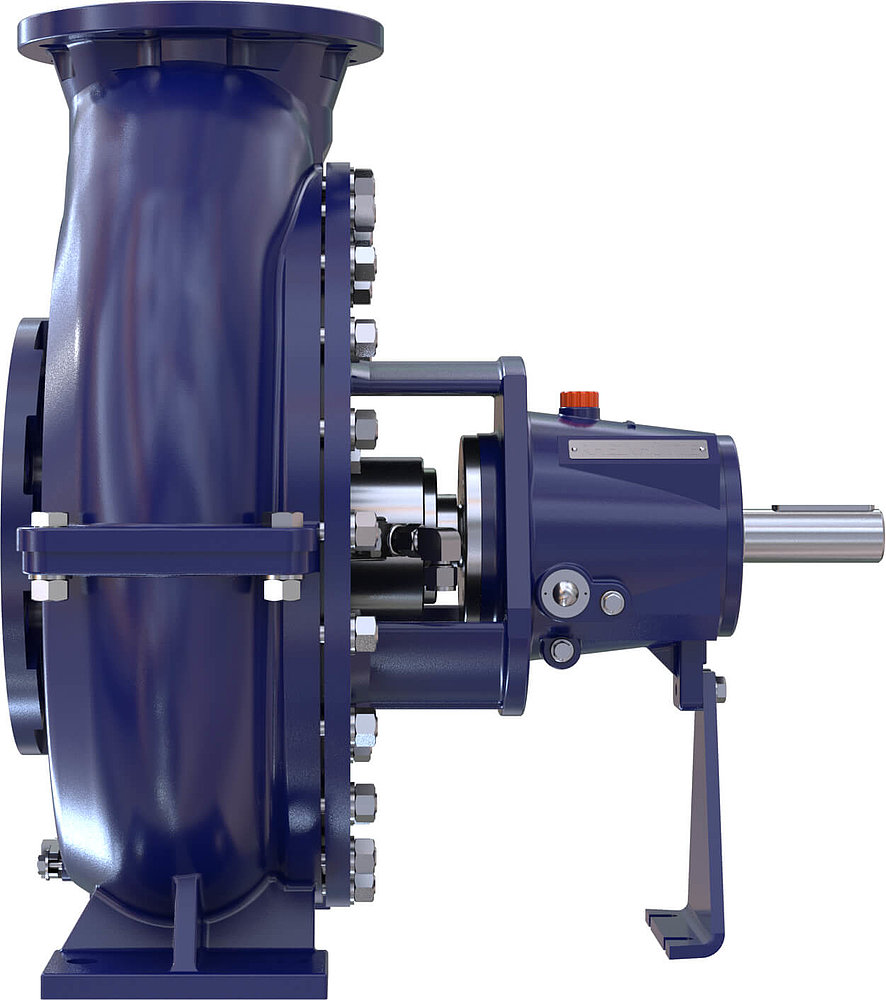

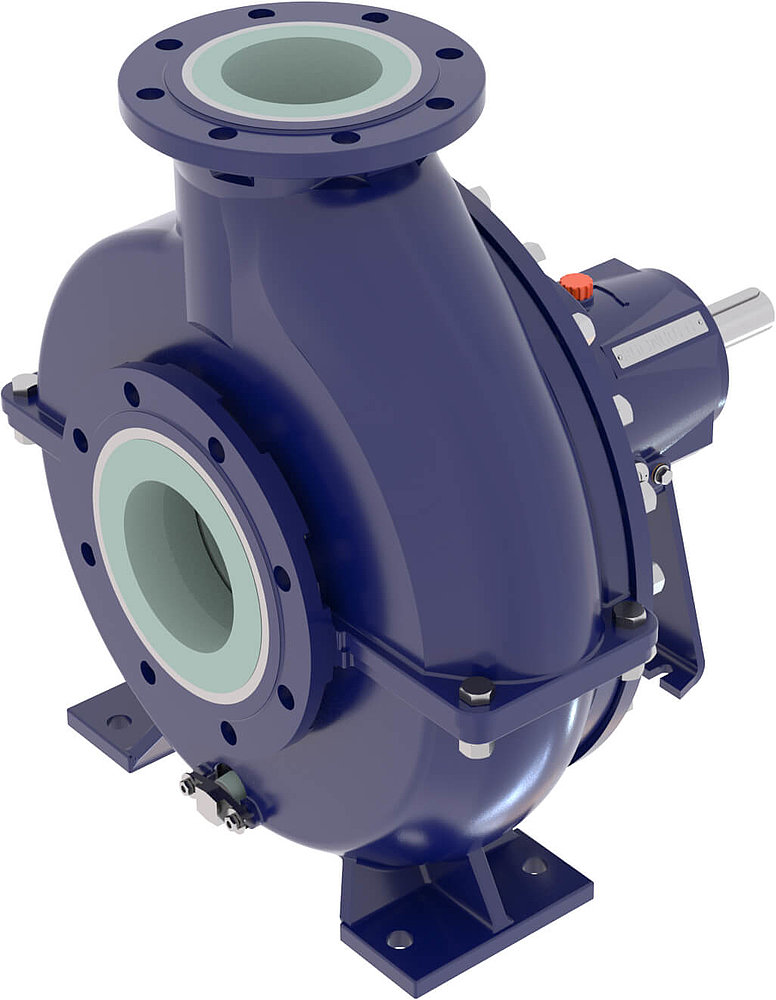

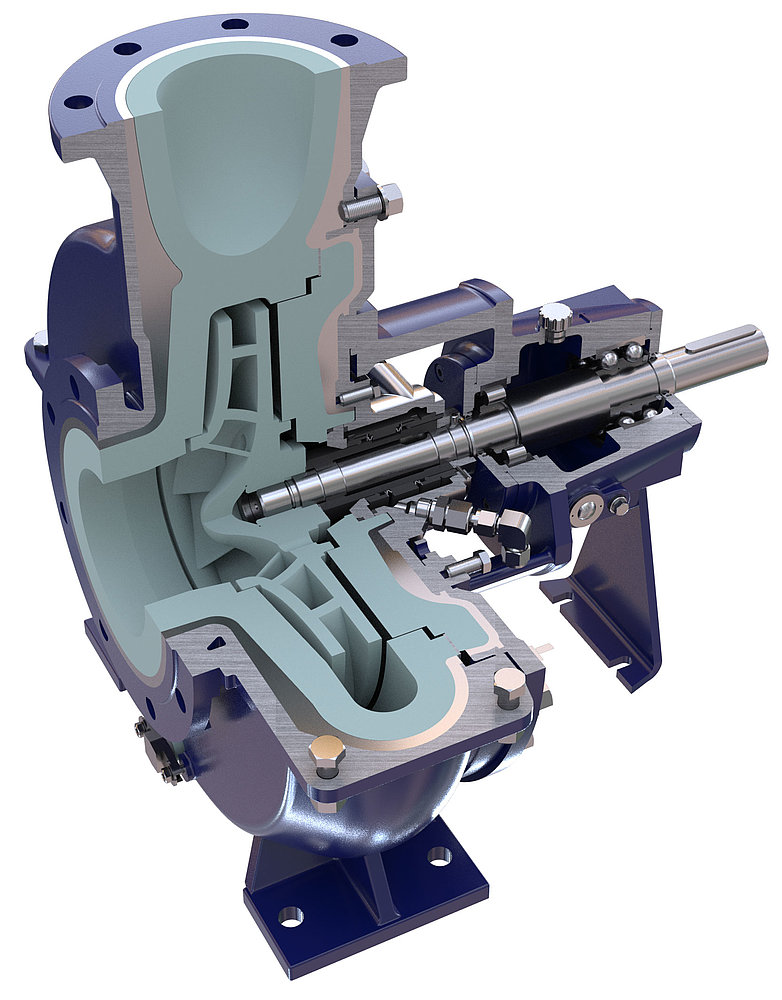

FNC – Pompe normalisée process en céramique
Données techniques
Type
Pompe centrifuge horizontale
Roue
fermée
Température
-40 °C à 120 °C (-40 °F à 248 °F)
Matériau
Céramique
Plage de débit
Qmax = 600 m3/h
Taille
DN 32 - DN 150
Plage de pression
Hmax = 90 m
Chemically aggressive, even contaminated, media throughout the whole range of chemical processing technology, surface coating technology, environ-mental engineering and other areas of industry.
- Chlor-Alkali Electrolysis
- Sulphuric acid
- Steel and Stainless steel pickles
- Phosphoric acid
- Nitric acid
- Sea water
- Waste incineration (flue gas cleaning)
- Scrubber
- Waste water
- Hydrochlorid acid
Norme
ISO 5199, ISO 2858, EN 22858
Type
horizontale, monocellulaire
Type de volute
Volute simple
Roue
fermée
Lubrification des paliers
Lubrification huile
Type d'installation
Sur socle, sur châssis ou sur plots antivibratils
Température ambiante
-20°C à 60°C (-4 °F à 140 °F)
Valeur maximum de solides
environ. 20 %
Vidange volute
Balayage (Flushing) possible dans plusieurs variantes.
Surveillance de la temperature et des vibrations
Brides suivants standards internationaux
Système Thermosiphon
Système Quench
Réservoir d'amorçage
Accessoires pompes
- FRIKORUND®
